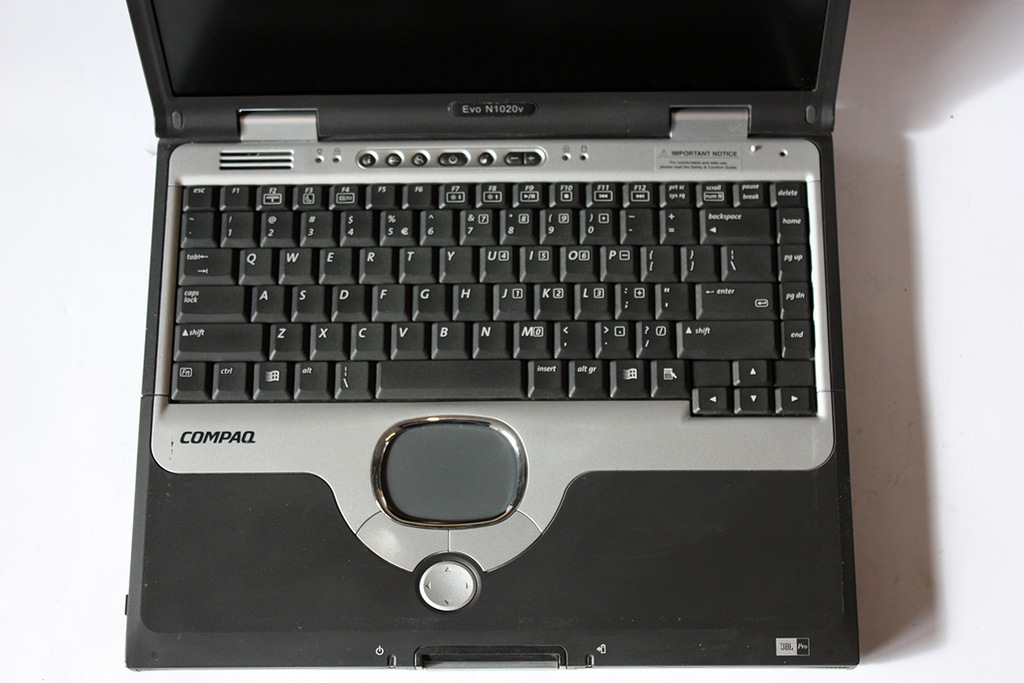

Laptop parts for HP Compaq Evo n1000v
| Brand | HP |
|---|---|
| Series | Compaq Evo |
| Model | n1000v |
Laptop Screen
291641-001
14.1-inch TFT XGA display panel – 1024 x 768 resolution, up to 16.8 million colors, 150:1 contrast ratio – With internal side-mounted supports
291642-001
15.0-inch TFT XGA display panel – 1024 x 768 resolution, up to 16.8 million colors, 150:1 contrast ratio – With internal side-mounted supports
291643-001
15.0-inch TFT SXGA+ display panel – 16.8M color support with resolutions up to 1400 x 1050 pixels, 150:1 contrast ratio
Laptop Cover
Keyboard
285530-001
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (English)
285530-002
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (International)
285530-041
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (German)
285530-051
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (French)
285530-061
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Italian)
285530-071
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Spanish)
285530-081
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Danish)
285530-091
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Norwegian)
285530-101
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Swedish)
285530-111
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Swiss)
285530-121
KEYBOARD – 88-KEY COMPATIBLE WITH ISOLATED CURSOR CONTROL KEYS, SPECIAL FEATURE HOTKEYS FOR POWER CONSERVATION, INTERNAL/EXTERNAL/SIMULTANEOUS DISPLAYS, AND BRIGHTNESS/CONTRAST CONTROL (CANADIAN-FRENCH)
285530-131
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Portuguese)
285530-141
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Turkish)
285530-161
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Latin America-Spanish)
285530-181
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Belgium-Flemish)
285530-201
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Brazil-Portuguese)
285530-211
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Hungarian)
285530-221
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Czechoslovakian)
285530-231
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Slovakian)
285530-251
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Russian)
285530-281
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Thai)
285530-291
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Japanese)
285530-AA1
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Chinese)
285530-AB1
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Taiwanese)
285530-AD1
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Korean)
285530-BB1
Keyboard – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (Hebrew)
285531-001
Keyboard with point-stick – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (USA – English)
285531-031
Keyboard with point-stick – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (For the United Kingdom)
285531-041
Keyboard with point-stick – 88-key compatible with isolated cursor control keys, special feature hotkeys for power conservation, internal/external/simultaneous displays, and brightness/contrast control (German)
Battery
278418-B25
Battery pack – 2.2Ahr, 8-cell, lithium-ion (Li-ION) – Rechargeable
281766-001
SPS-BTRY,8C,58WH,LI
289053-001
Battery (Primary) – 8-cell lithium-ion (Li-Ion), 14.8VDC, 3.9Ah, 62Wh
291369-B25
Battery (Primary) – 8-cell lithium-ion (Li-Ion), 14.8VDC, 4.0Ah, 59Wh – For N1000/N1005 series
279769-001
Battery for real time clock (RTC) – 3v, 36mA, lithium
Charger & Adapter
283884-001
AC power adapter – 90W output – Requires separate 3-wire AC power cord
286755-001
AC power adapter (90-watt) – 110-240VAC input voltage, 50-60Hz, 1.5A, slim form factor with power factor correction (PFC) – Requires separate 3-wire AC power cord
265603-001
External battery charger (United States)
265604-001
External dual battery charger – Charges two batteries at the same time (United States)
SSD & Memory (DIMM)
285539-001
1.44MB floppy disk drive – 3.5-inch form factor, 12.7mm height – For use with models without a point-stick keyboard
285526-001
IDE CD-ROM drive – 24X read speed
285527-001
IDE DVD-ROM drive – 24X CD-read (3600 KB/s), 8X DVD-read (10,800 KB/s)
285529-001
IDE DVD-ROM/CD-RW combo drive – 8X speed CD-R (1200 KB/s), 8X speed CD-RW (1200 KB/s), 24X speed CD-ROM (3600 KB/s), and 8X speed DVD (10,800 KB/s)
288291-001
20.0GB IDE hard disk drive – 4,200 RPM, 2.5-inch form factor, 9.5mm height
192406-001
30.0GB IDE hard disk drive – 4,200 RPM, 2.5-inch form factor, 9.5mm height
273491-001
40.0GB IDE hard disk drive – 4,200 RPM, 2.5-inch form factor, 9.5mm height
303527-001
60.0GB IDE hard disk drive – 5,400 RPM, 2.5-inch form factor, 9.5mm height
217390-B25
1.0GB pocket PC IBM branded microdrive with PC card adapter
269085-B25
128MB, 266MHz, PC2100 DDR-SDRAM SO-DIMM memory module
269086-B25
256MB, 266MHz, PC2100 DDR-SDRAM SO-DIMM memory module
269087-B25
512MB, 266MHz, PC2100 DDR-SDRAM SO-DIMM memory module
285522-001
128MB, 266MHz, PC2100, DDR-SDRAM DIMM memory module – 2.5V core voltage
285523-001
256MB, 266MHz, PC2100, DDR-SDRAM DIMM memory module – 2.5V core voltage
285524-001
512MB, 266MHz, PC2100, DDR-SDRAM DIMM memory module – 2.5V core voltage
Fans
285543-001
CP fan assembly
291648-001
Heat spreader for desktop processors (A0310) – Draws heat away from processor and disperses it evenly throughout the body of the PC
CPU & Motherboard
285515-001
Motherboard (system I/O board), A0310 – Does not include processor
285515-001
Motherboard (system I/O board), A0310 – Does not include processor
Speaker
285538-001
Speaker – Internally mounted speaker assembly
Trackpad & Mouse
195255-B25
Compaq USB scrolling mouse – Two button mouse with a scrolling wheel between the two buttons – Has 1.85m (6.0ft) long USB cable
